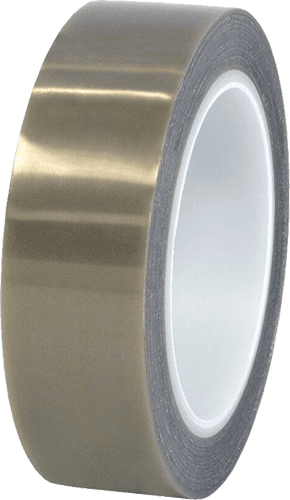

TFES-2HD – 2 Mil Skived PTFE Film Tape

TFES-2HD – 2 Mil Skived PTFE Film Tape Is a high density, TENSILIZED skived PTFE film which provides higher tensile strength, lower elongation higher dielectric strength than regular skived film (primarily used for electrical applications listed below & for roll protection in flat die extrusion) Pure skived PTFE with a high temperature silicone adhesive. Used in electrical applications such as harness/coil wraps separators, transformers slot liners where good insulation heat resistance are required. Meets Spec AA-59474 Type-1, Superseding 23594C Type 1. Applications: Heat sealing bars jaws Labeling machine pressure pads Chute liners Anti-friction devices, bearings, forming dies, aircraft mold release guide rails where high temperature, maximum slip and lubricity are required High elongation permits tight wrapping; conforms to sharp bends/irregular surfaces Physical Properties: Color: Gray Backing Thickness: 2 mil/0.002″ Total Tape Thickness: 3.5 mil/0.0035″ Break Strength: 30 lb/in Adhesion: 25 oz/in Elongation: 100% Maximum Operating Temperature: 500°F Dielectric Strength: 8 kV 36 Yard Rolls 3″ Plastic Core Alternative to 3M #5480;Permacel #P422 ; DeWal #204-2HD; St. Gobain #2255-2 ;Taconic #6445-02; Chemfab #380-02; Lanmar #585-2; Bondtec #932F
