KPT-2 – 2 Mil Polyimide Film Tapes, Silicone Adhesive

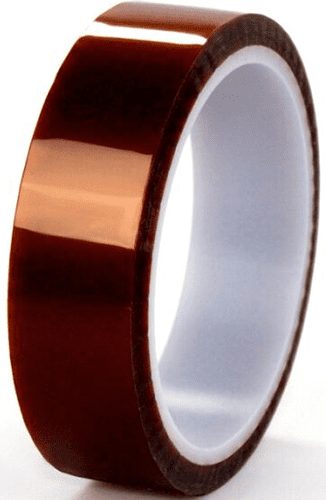

KPT-2 – 2 Mil Polyimide Film Tapes, Silicone Adhesive 2 mil electrical grade Kapton™ alternative POLYIMIDE film Wave Solder/Hot Air Leveling Tapecoated with a high performance silicone adhesive. Thin and conformable with outstanding tearand abrasion resistance at elevated temperatures. Adhesive will thermoset to increase adhesion values. Leaves minimal residue when removedafter manufacturing process; reduces clean-up time and minimizes rejects. Permits observationof board during processing. Excellent resistance to acids, oils, solvents, aging, staining, water immersion. Protects gold contactsfrom molten solder during hot air wave solder leveling process Film meets UL510. Formulated to meet spec MIL-P-46112B Physical Properties: Film Color: Gold/Amber (transparent) Film Thickness: 2 mil Tape Thickness: 3.5 mil Adhesion: 27.4 oz/in Tensile Strength: >36.5 lbs/in Elongation: >70% Dielectric Strength: >8000 V Temperature Resistance: 200°C (392°F)/30 min 36 Yard Rolls 3″ Plastic Core Alternative to Electro Tape #95-2; Ideal #9322; T&F #3903; American #304-2; Anchor #K-350; Permacel #P-222; Taconic #6325-02; Berry Global #2345-2; Tesa #4429; Dewal #303-2
